Pressure Regulator
Manual Pressure Regulator

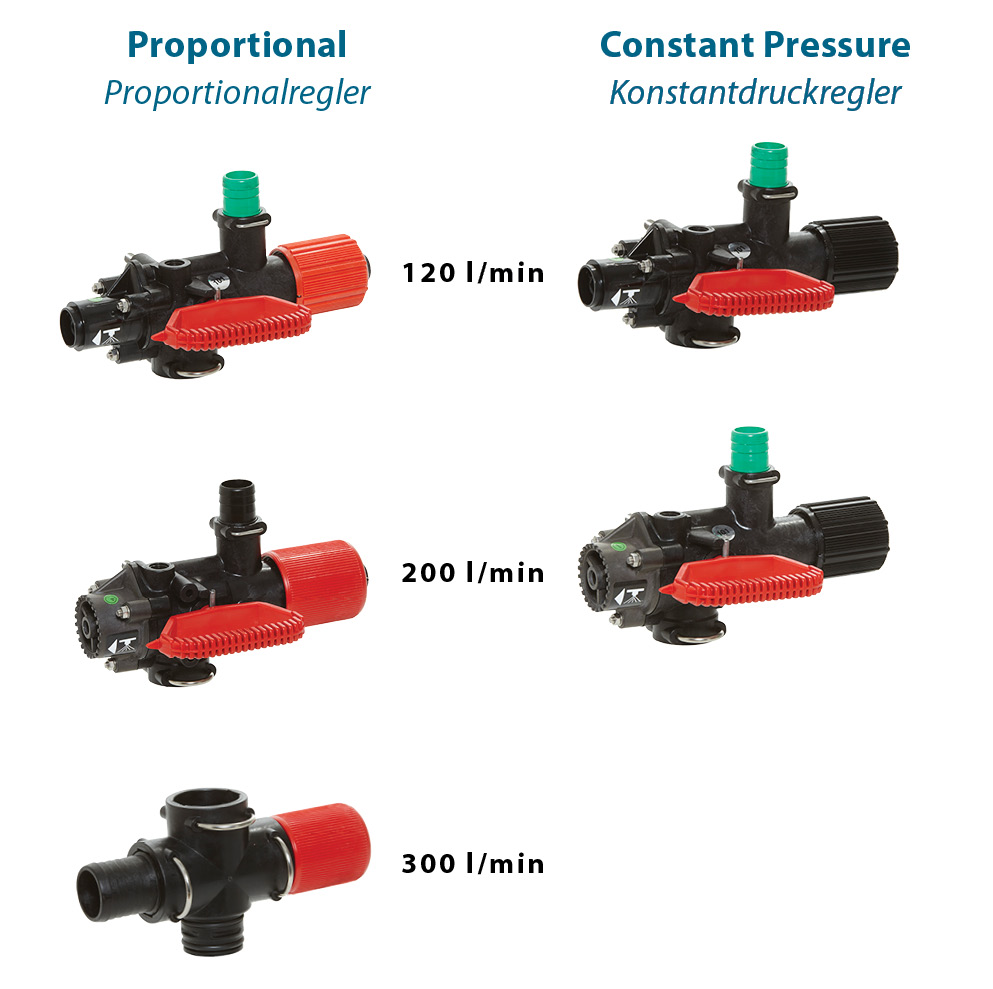

Overview
- Compact flexible design
- High flow rate
- Working independently from other system components
- Quick and flexible installation due to altek Plug-In System
- Perfectly combinable
- Piston rod guide free of play
Proportional Regulator 120 · 200 · 300
The cross section control is responsible for a constant application rate even with speed fluctuations.

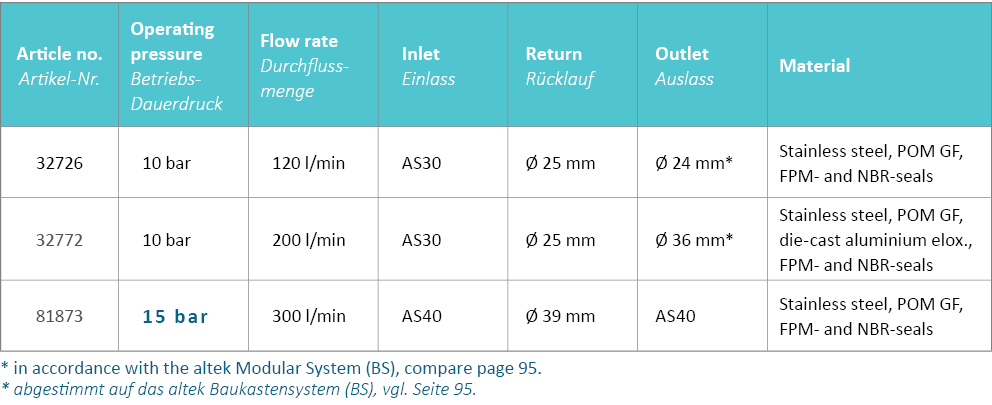

Basic Parameters
Constant Pressure Regulator 120 · 200
The pressure regulation is responsible for a constant spraying pressure even with speed fluctuations.

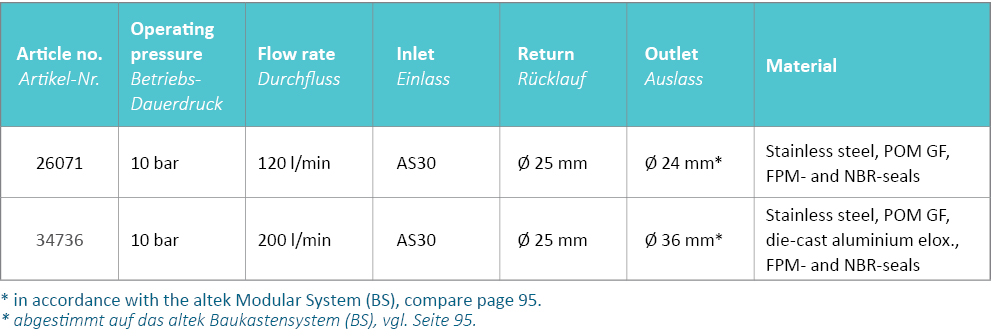

Basic Parameters

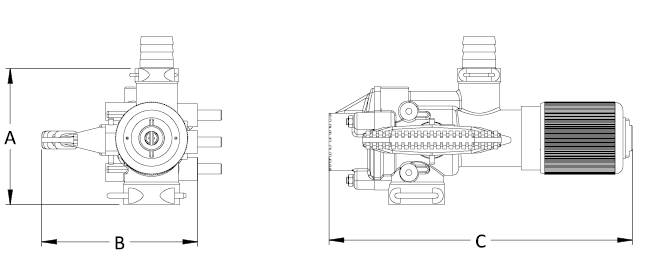

Dimensions
Proportional Regulators 120 · 200 · 300
| Proportional Regulators | 120 | 200 | 300 |
| A, in mm | 135 | 130 | 105 |
| B, in mm | 125 | 120 | 70 |
| C, in mm | 225 | 225 | 180 |
Constant Pressure Regulators 120 · 200
| Constant Pressure Regulators | 120 | 200 |
| A, in mm | 130 | 135 |
| B, in mm | 120 | 120 |
| C, in mm | 240 | 220 |
